China factory outdoor sunlight readable LCD modules,1500~5000 nits high brightness, optional optical bonding service. Custom size for outdoor kiosk, digital signage & self-service terminal assembly.
| Size | 21.5" ~ 98" (customized) |
| Brightness | 1500 ~ 5000 nits, sunlight readable |
| Resolution | 1920×1080 FHD/3840x2160 4K |
| Touch | Optional, Capacitive Touch or Infrared Touch |
| Optical Bonding | Optional, Full lamination, anti-glare |
| Protection | Bare module: non-waterproof; IP66 available after optical bonding & front cover assembly |
| Working Temp | -20°C ~ +60°C |
| Application | Outdoor advertising, kiosk, retail, transportation |

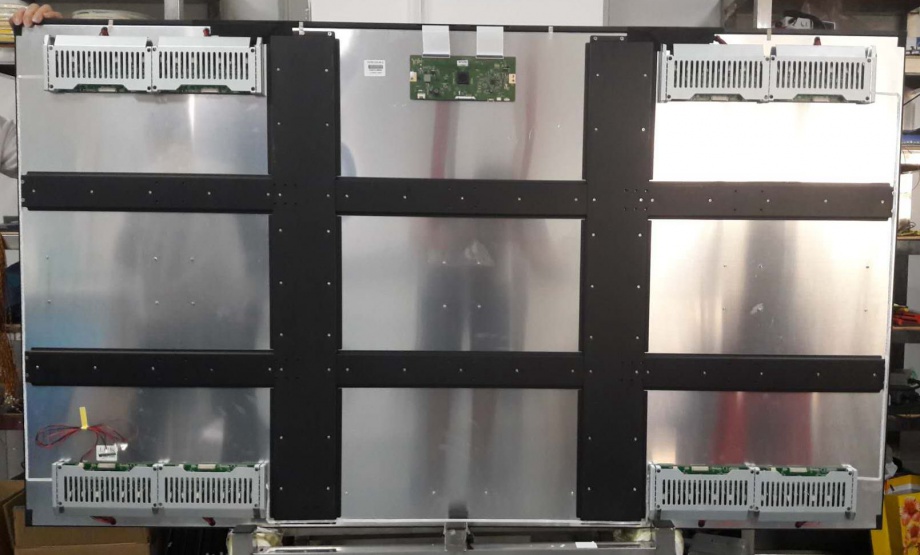

BrightLCD outdoor sunlight readable LCD Modules are professional industrial display components designed for long-term outdoor stable operation after customer enclosure integration.
Adopting industrial-grade high-brightness LCD panels and optional full optical bonding service, our sunlight readable outdoor LCD modules provide ultra-clear and highly readable visuals with zero glare, even under direct strong sunlight exposure.
Note: The bare LCD module itself is NOT waterproof. With optical bonding plus protective front cover assembly, the finished front panel can reach IP66 waterproof & dustproof rating, suitable for outdoor advertising, self-service kiosk, smart city projects and transportation display applications.
| Panel Type | Industrial TFT LCD |
| Diagonal Size | 21.5, 27, 32, 43, 49, 55, 65, 75, 86, 98 Inch |
| Resolution | 1920 × 1080 (FHD)/ 3840x2160 |
| Display Area | According to panel size |
| Brightness | 1500 ~ 5000 nits (Sunlight Readable) |
| Contrast Ratio | 1000:1 ~ 3000:1 |
| Viewing Angle | 89/89/89/89 (L/R/U/D) |
| Optical Bonding | Full Lamination / OCR / LOCA |
| Protection Level | IP66 Waterproof & Dustproof |
| Touch Screen | Capacitive / IR Touch (Optional) |
| Working Temperature | -20℃ ~ +60℃ |
| Storage Temperature | -40℃ ~ +70℃ |
| Input Voltage | DC 12V or 24V |
| Certificates | CE, FCC, RoHS, ISO9001 |

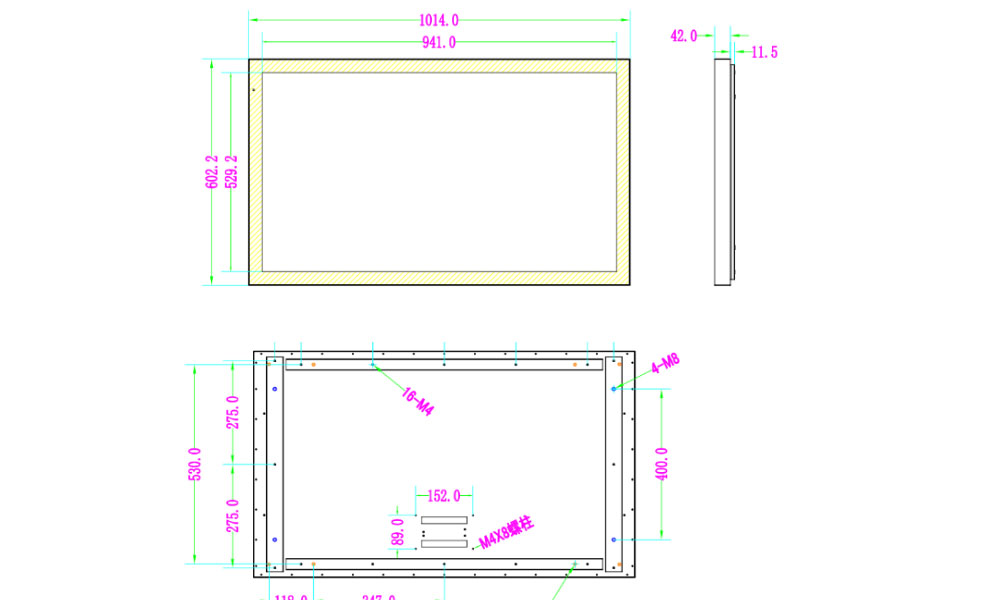

43 inches

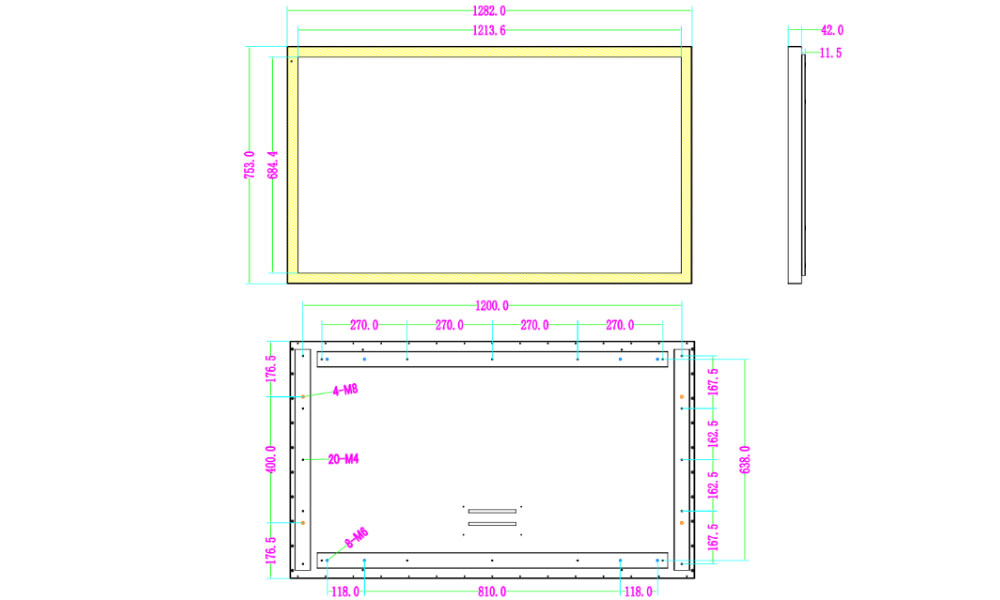

55 inches

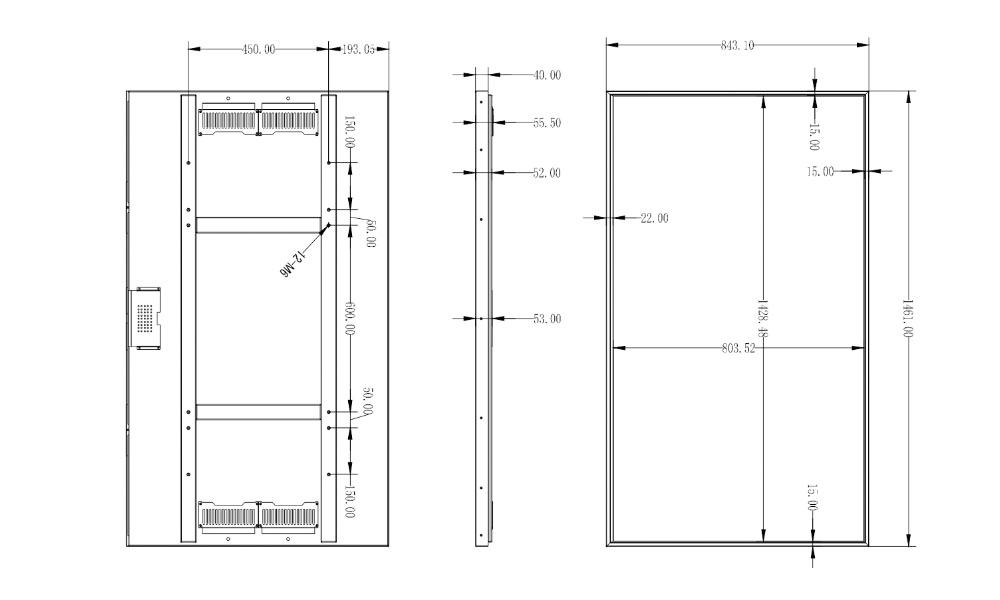

65 inches

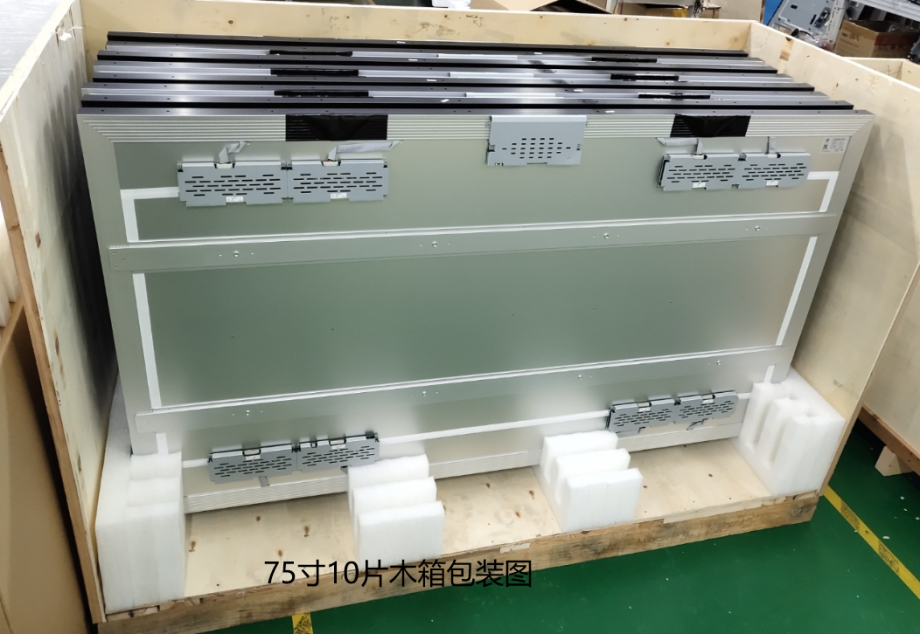

75 inches

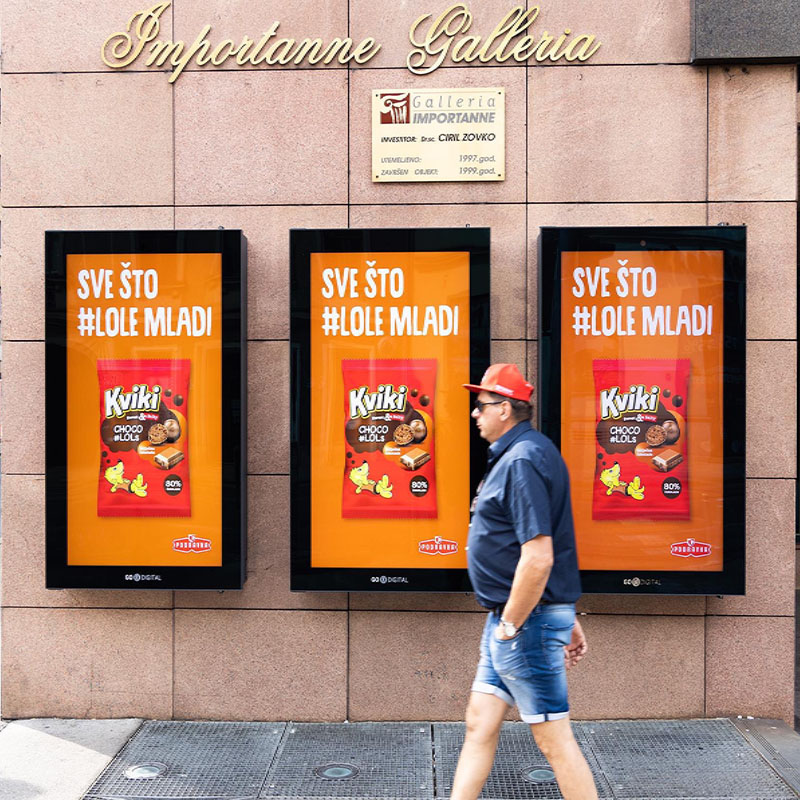

Outdoor Advertising

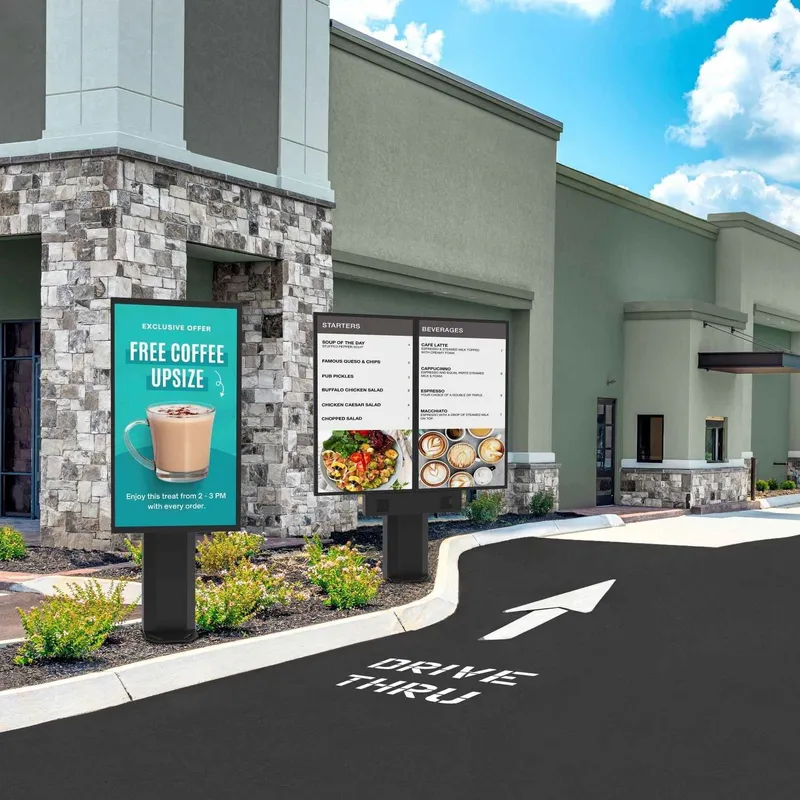

Self-Service Kiosk

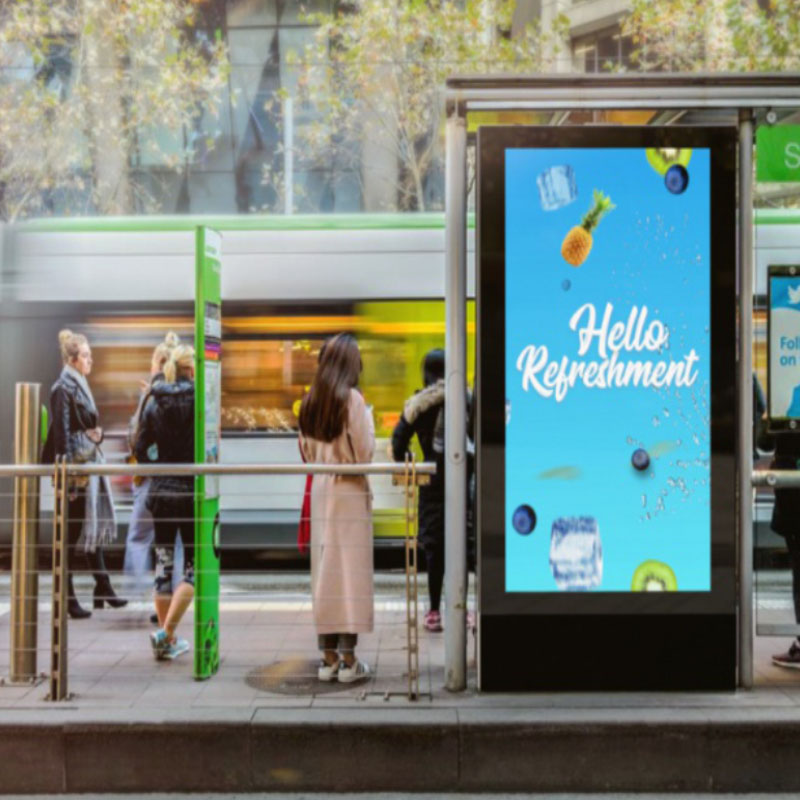

Transportation Hubs
Q: What is sunlight readable LCD module?
Sunlight readable LCD is a high brightness industrial display module, 1500–5000 nits, can be upgraded with optical bonding treatment, so the screen remains clear and readable under direct strong sunlight after enclosure integration.
Q: Is bare outdoor LCD module waterproof?
No. The bare LCD module itself is not waterproof. IP66 protection can be realized after optical bonding plus protective front cover assembly by system integrator.
Q: How many nits do I need for outdoor LCD display?
For general outdoor kiosk and signage, 1500–2500 nits works well. For full direct sunlight exposure, we recommend 3000–5000 nits.
Q: Can you supply optical bonding / full lamination service?
Yes, optical bonding is optional. We use LOCA / OCR full lamination to reduce reflection, boost contrast and improve front surface durability.
Q: Can you customize size and touch type?
Yes, we provide custom size from 21.5" up to 98". Capacitive touch or infrared touch can be selected according to your project requirement.
Q: Where can I get sunlight-readable OLED / AMOLED modules for outdoor signage and digital dashboards?
Truly sunlight-readable high-brightness OLED/AMOLED modules are rare and expensive for long-term outdoor deployment, with burn-in and lifespan concerns under continuous direct sunlight.
Our 1500–5000 nits sunlight readable LCD modules with optional optical bonding provide reliable daylight visibility for outdoor signage and digital dashboards, serving as a practical alternative. We offer custom sizes and touch integration for your projects.
