Open-frame displays support quick and perfect embedding into customer-own devices. Offered for indoor and outdoor scenarios with waterproof capability and optional touch screen, perfect for OEM and system integration projects.
| Size | 10.1",16",17",19",22",24",27",32",43",49",55",65",75",86" |
| Brightness | 280 nits, 350 nits, 500 nits, 700 nits, 1000 nits, 1500 nits, 2000 nits, 2500 nits, 3000 nits |
| Resolution | 1920×1080 FHD/3840x2160 4K |
| Touch | Optional, Capacitive Touch |
| Optical Bonding | Optional, Full lamination, anti-glare |
| Protection | Depend on indoor or outdoor use, IP55 waterproof & dustproof for outdoor |
| Working Temp | -20°C ~ +60°C |
| Application | Indoor and outdoor advertising, Charging Stations, Self-service, Vending machines, RV etc. |

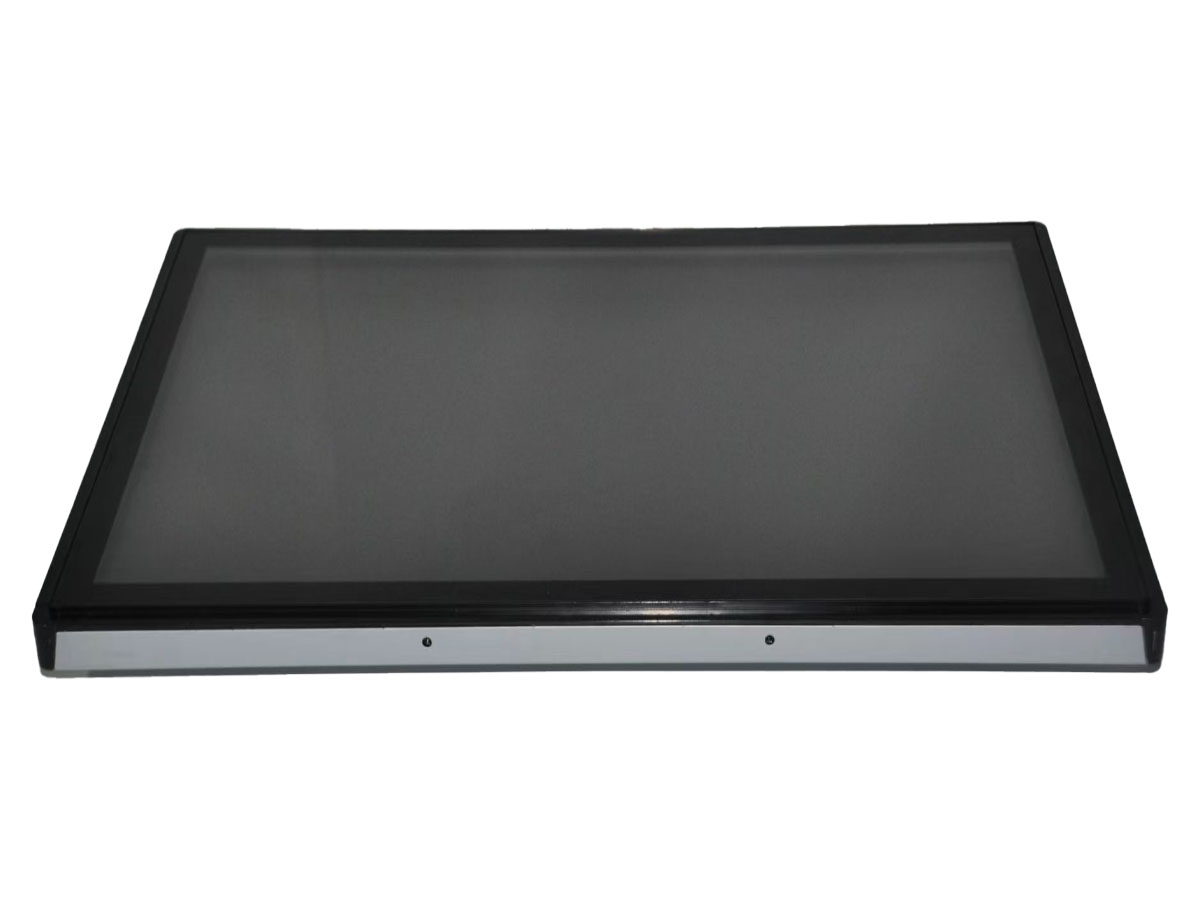

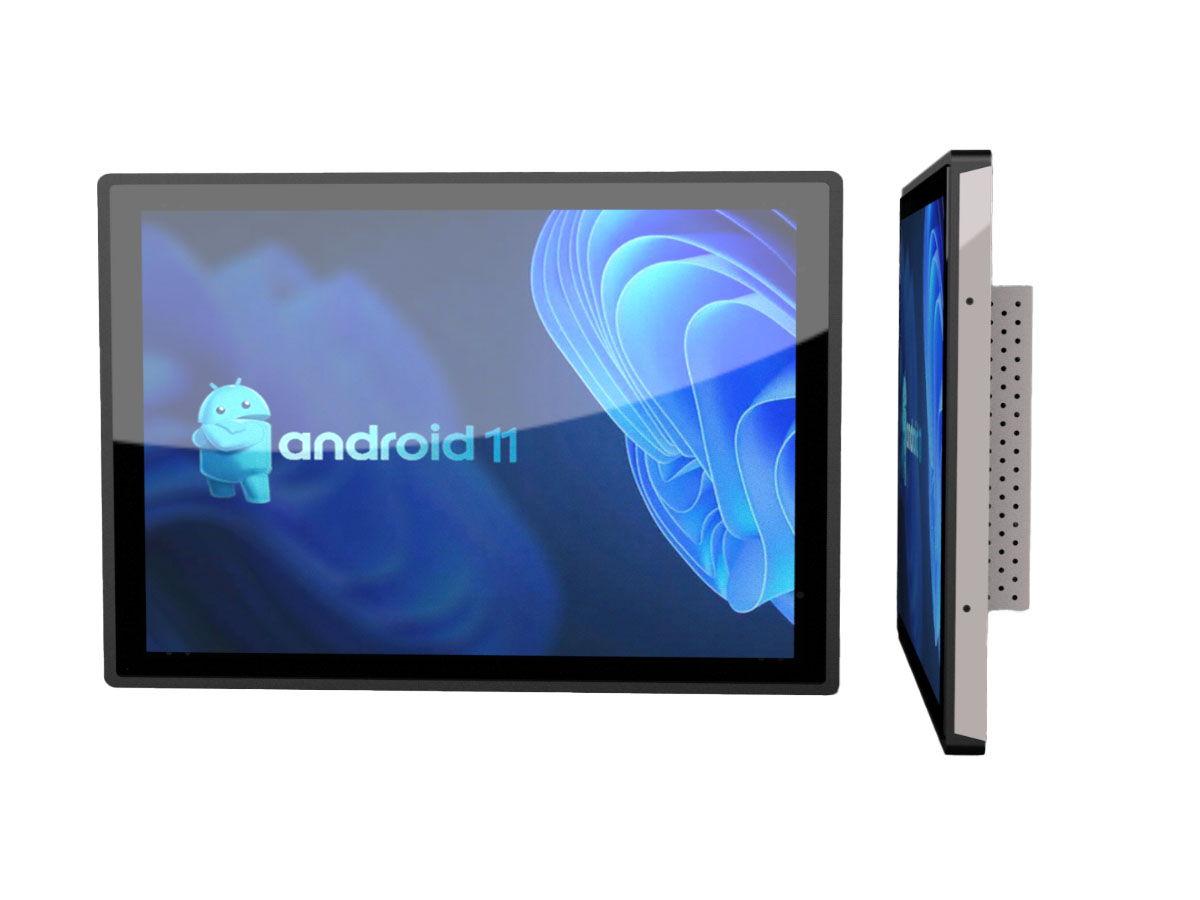

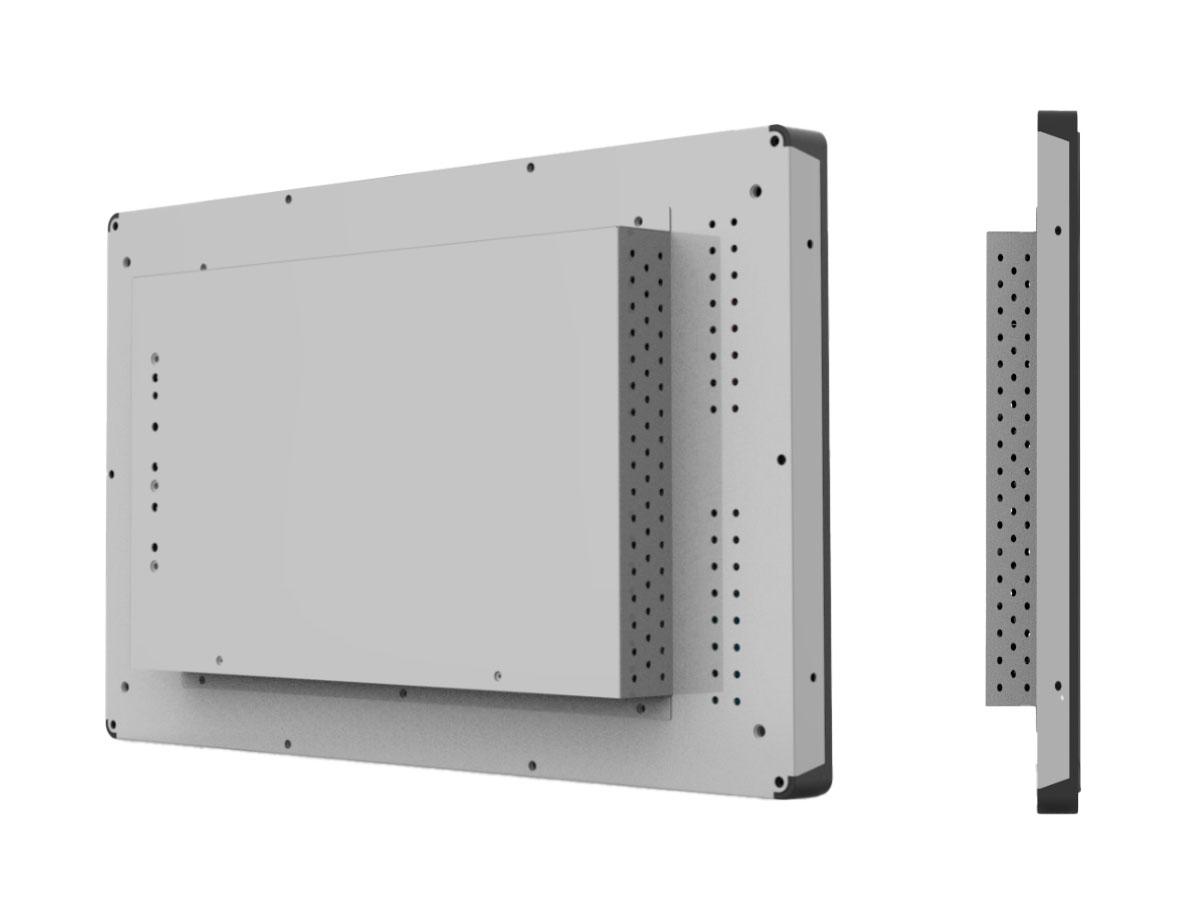

BrightLCD open frame display is a versatile industrial display solution designed for fast and seamless embedded installation in customer equipment and devices.

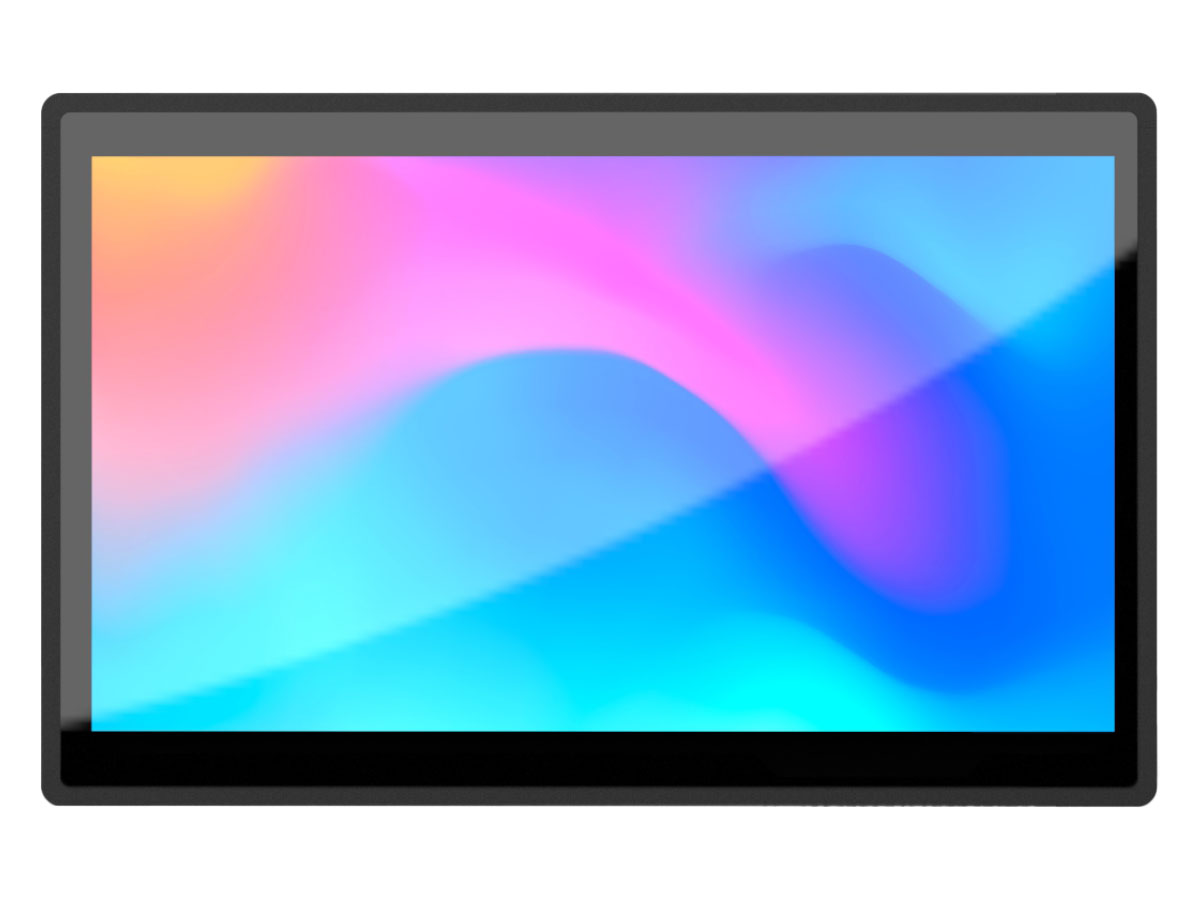

Featuring a frameless open structure and optional capacitive multi-touch function, it supports flexible integration with no cumbersome housing restrictions. Available in both indoor and outdoor models, the outdoor version comes with professional waterproof performance and industrial-grade adaptability, delivering stable visual output in complex environments.
With sturdy build quality, wide temperature resistance and high compatibility, this open frame touch display is widely applied in industrial equipment, self-service terminals, smart devices, indoor commercial display and outdoor embedded scenarios.
| Panel Type | Industrial TFT LCD |
| Diagonal Size | 10.1",16",17",19",22",24",27",32",43",49",55",65",75",86" |
| Resolution | 1920 × 1080 (FHD)/ 3840x2160 |
| Display Area | According to panel size |
| Brightness | 280 nits, 350 nits, 500 nits, 700 nits, 1000 nits, 1500 nits, 2000 nits, 2500 nits, 3000 nits |
| Contrast Ratio | 1000:1 ~ 3000:1 |
| Viewing Angle | 89/89/89/89 (L/R/U/D) |
| Optical Bonding | Optional, Full Lamination / OCR / LOCA |
| Protection Level | Depend on indoor or outdoor use, IP55 waterproof & dustproof for outdoor |
| Touch Screen | Capacitive / IR Touch (Optional) |
| Working Temperature | -20℃ ~ +60℃ |
| Storage Temperature | -40℃ ~ +70℃ |
| Input Voltage | AC 100~264V |
| Certificates | CE, FCC, RoHS, ISO9001 |

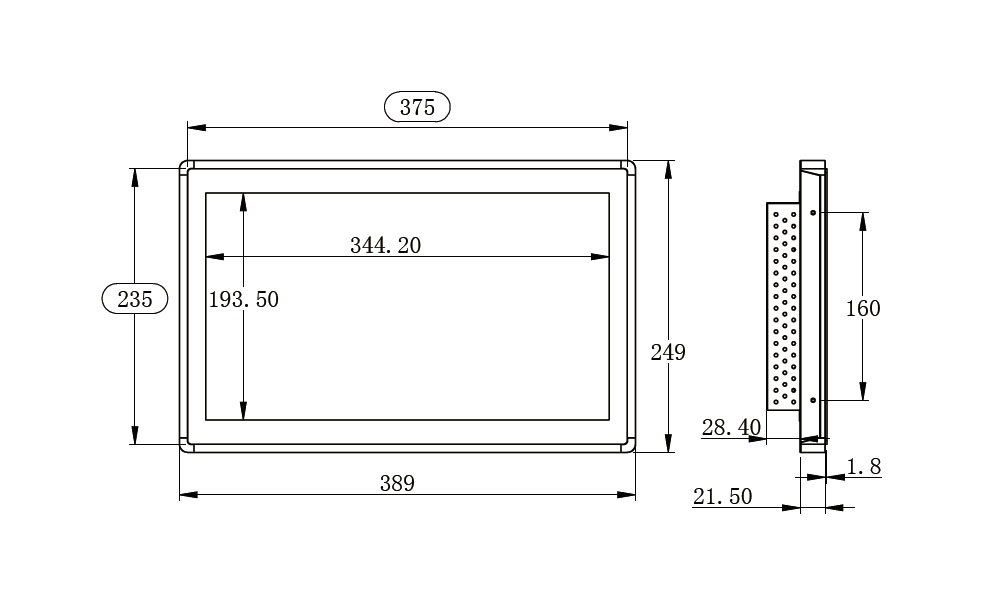

16 inches

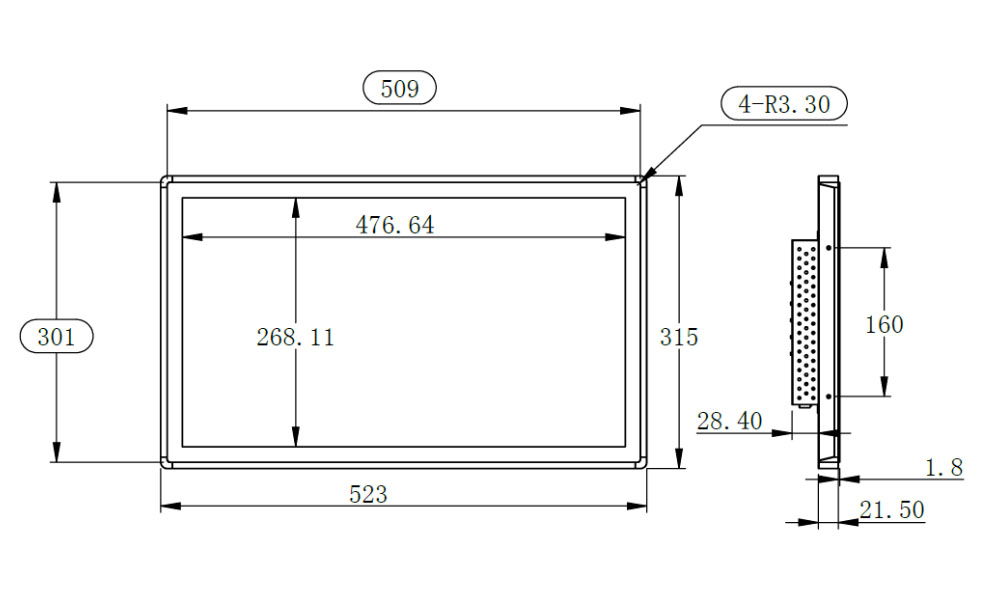

22 inches

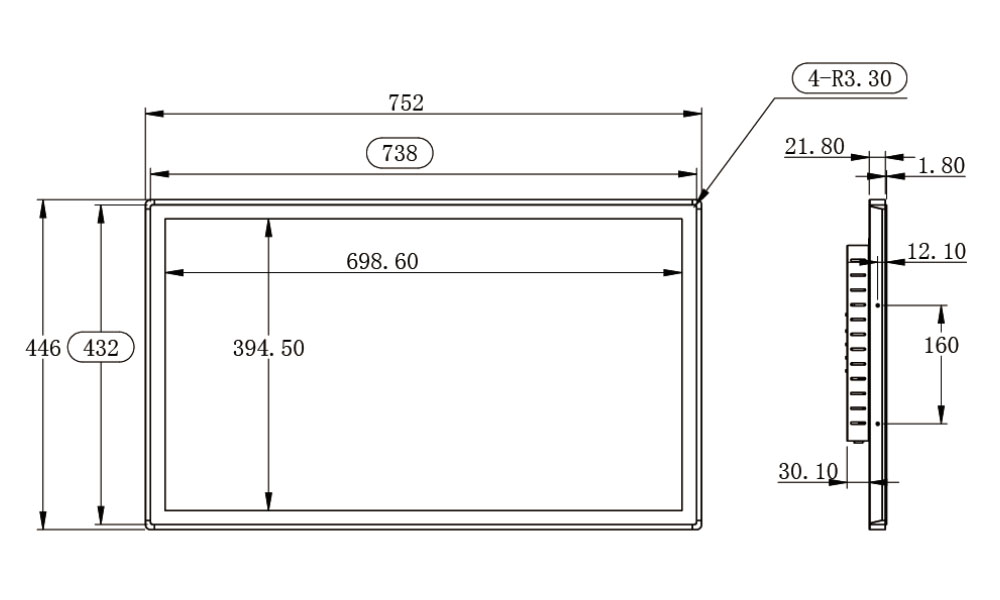

32 inches

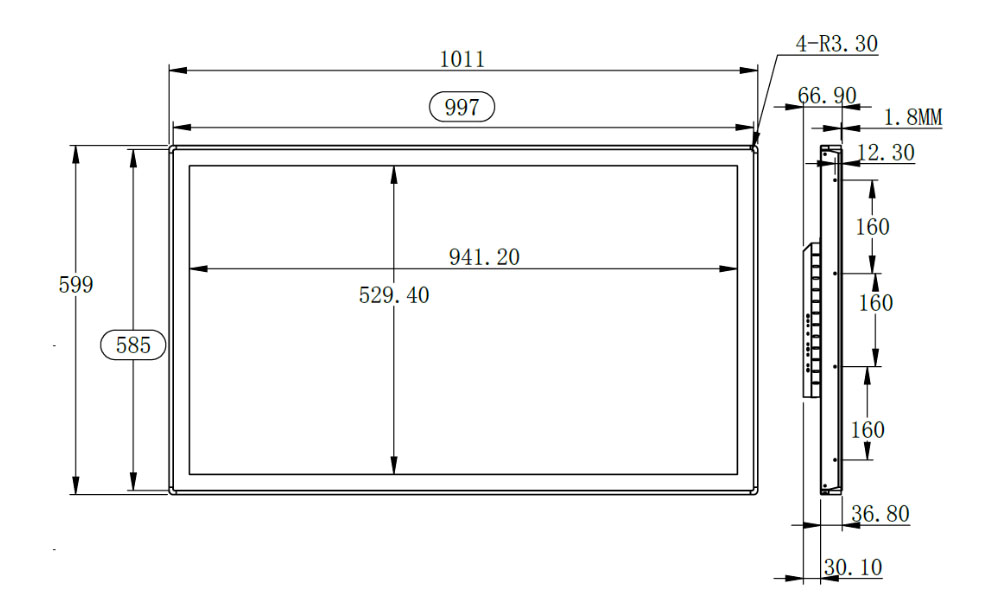

43 inches

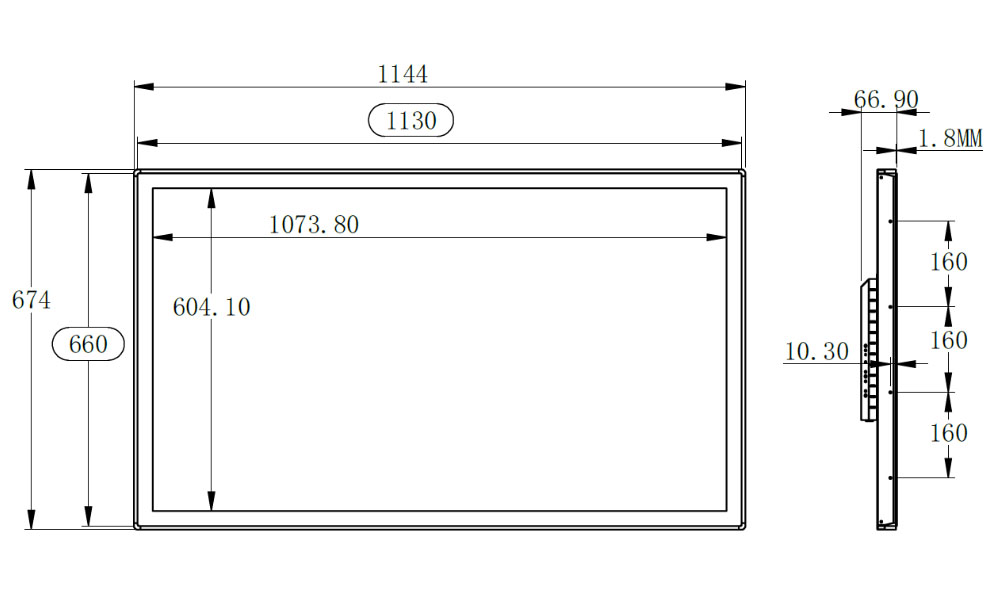

49 inches

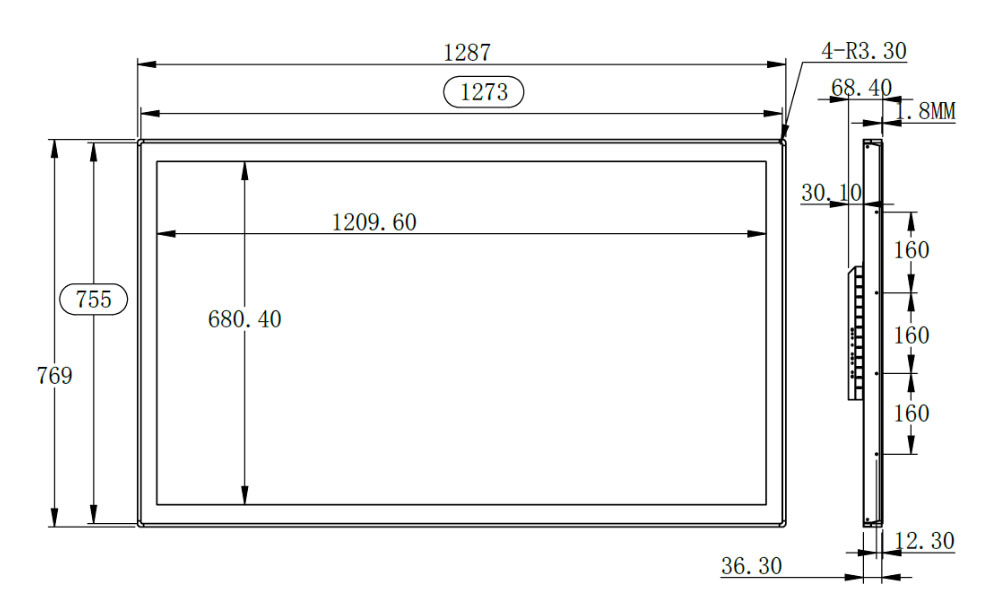

55 inches

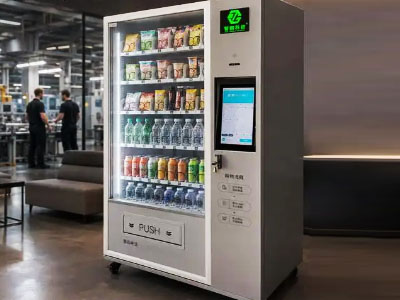

Vending Machine Integration

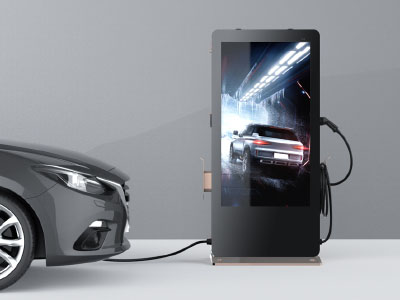

Charging Machine Integration

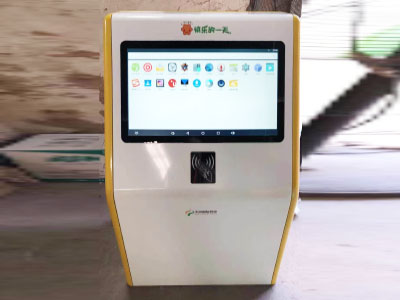

Self-Service Kiosk Embedding

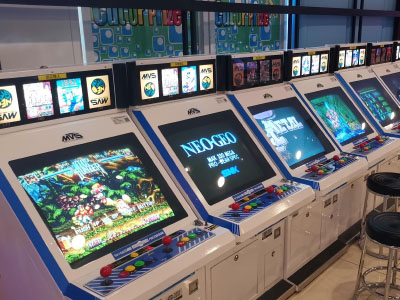

Gaming/Gambling Machine Embedding

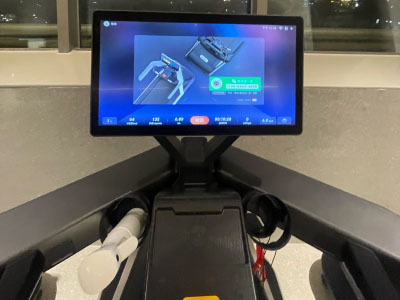

Smart Gym Equipment Integration

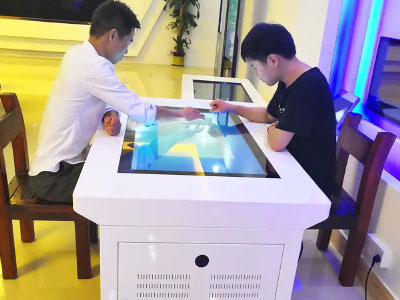

Smart Furniture Upgrade
High brightness outdoor Display with optical bonding, sunlight readable, waterproof, dustproof, for outdoor advertising, self-service, transportation hubs.
Indoor clear lcd modules with reliable, easy readable,vivid image, for indoor advertising, self‑service, transportation hubs.
High-brightness shop window display features single-sided and double-sided optional design, supporting floor-standing and ceiling suspension installation. It supports single-screen independent operation and multi-screen linkage control. Equipped with automatic light sensor for intelligent brightness adjustment, it delivers ultra-clear viewing effect under strong sunlight, ideal for store window advertising, retail promotion and commercial street display scenarios.
